| Frame | kW | Speed | Amps (400V) | Torque (Nm) | IP Rating | Efficiency |
|---|---|---|---|---|---|---|
| 4pole Motors | ||||||
| 63A | 0.12 | 1445 | 0.40 | 0.81 | IP69K | IE4 Premium Efficiency |
| 63B | 0.18 | 1445 | 0.48 | 1.21 | IP69K | IE4 Premium Efficiency |
| 71A | 0.25 | 1444 | 0.64 | 1.66 | IP69K | IE4 Premium Efficiency |
| 71B | 0.37 | 1440 | 0.94 | 2.45 | IP69K | IE4 Premium Efficiency |
| 80A | 0.55 | 1448 | 1.34 | 3.66 | IP69K | IE4 Premium Efficiency |
| 80B | 0.75 | 1456 | 1.74 | 4.95 | IP69K | IE4 Premium Efficiency |
| 90S | 1.1 | 1475 | 2.50 | 7.15 | IP69K | IE4 Premium Efficiency |
| 90L | 1.5 | 1475 | 3.34 | 9.75 | IP69K | IE4 Premium Efficiency |
| 2pole Motors | ||||||
| 63A | 0.18 | 2890 | 0.45 | 0.6 | IP69K | IE4 Premium Efficiency |
| 63B | 0.25 | 2895 | 0.58 | 0.84 | IP69K | IE4 Premium Efficiency |
| 71A | 0.37 | 2930 | 0.85 | 1.23 | IP69K | IE4 Premium Efficiency |
| 71B | 0.55 | 2910 | 1.24 | 1.85 | IP69K | IE4 Premium Efficiency |
| 80A | 0.75 | 2900 | 1.52 | 2.45 | IP69K | IE4 Premium Efficiency |
| 80B | 1.1 | 2910 | 2.10 | 3.60 | IP69K | IE4 Premium Efficiency |
| 90S | 1.5 | 2930 | 3.00 | 4.90 | IP69K | IE4 Premium Efficiency |
| 90L | 2.2 | 2920 | 4.22 | 7.2 | IP69K | IE4 Premium Efficiency |
| 6pole Motors | ||||||
| 71A | 0.18 | 890 | 0.55 | 1.95 | IP69K | IE4 Premium Efficiency |
| 71B | 0.25 | 890 | 0.75 | 2.65 | IP69K | IE4 Premium Efficiency |
| 80A | 0.37 | 890 | 1.10 | 3.98 | IP69K | IE4 Premium Efficiency |
| 80B | 0.55 | 900 | 1.30 | 5.30 | IP69K | IE4 Premium Efficiency |
| 90S | 0.75 | 940 | 1.70 | 7.60 | IP69K | IE4 Premium Efficiency |
| 90L | 1.1 | 950 | 2.40 | 11.10 | IP69K | IE4 Premium Efficiency |

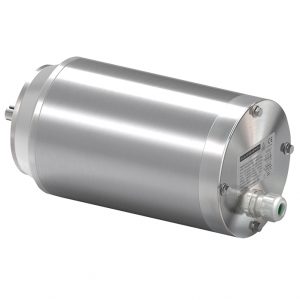

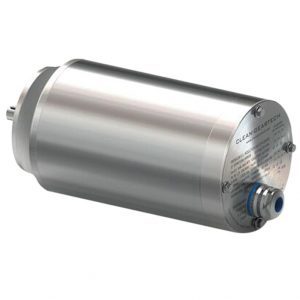

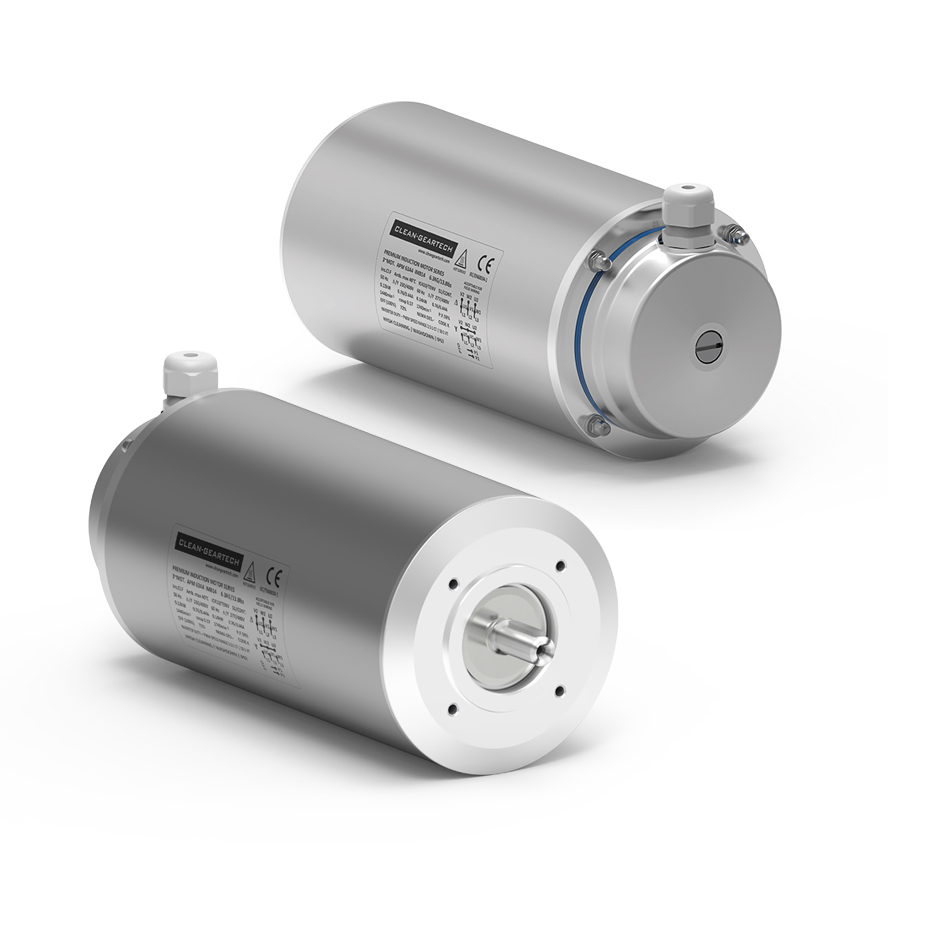

Clean-Geartech APM Series Hygienic Aluminium Motors
- Now available in speeds 2, 4 & 6pole
- Totally Enclosed non ventilated
- Standard terminal box with cable gland in radial position
- Energy efficiency rating IE4
- Protective high resistance coating
- UL certification
- Highest waterproof rating IP69K
- B14 Mounting only for APM Series
- Made and assembled in Italy
Product Enquiry: Clean-Geartech APM Series Hygienic Aluminium Motors
APM Aluminium Hygienic Motor Applications
Best suited for applications where there is hot water washdown without aggressive detergents being used. Idea in basic sanitisation procedures in areas such as such as meat and poultry, fish and seafood processing, fruit and vegetables, dairy production, beverages, bakery applications and marine.
Suitable for Food processing sectors
- Meat
- Poultry
- Dairy
- Seafood
- Petfood
- Confectionery
