Size | Torque (Nm) | Hollow shaft (mm) |
---|---|---|
40 | 40 | 18mm |
50 | 80 | 25mm |
63 | 145 | 25mm |
75 | 255 | 28mm |
85 | 415 | 35mm |
110 | 640 | 42mm |
Square Universal Mount Worm Gearboxes
Square Universal Mount Worm Gearboxes
- Sizes 40 – 110
- Ratio 7:1 – 100:1
- Hollow Shafts
- 18mm – 42mm

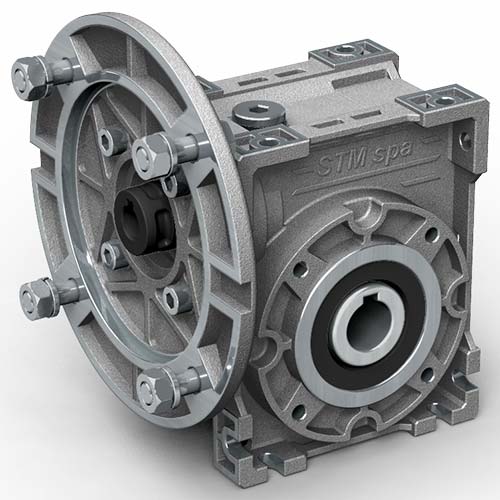

Cube-shaped STM Worm Gearboxes made from die cast aluminium, providing increased strength and performance. Includes a modular attachable output flange (FL) for more flexibility.
EQM Industrial supply STM Gearboxes New Zealand-wide. Contact Us for information on products and system designs.
Product Enquiry: Square Universal Mount Worm Gearboxes
Why STM Standard?
- Modular design
- Wide range of sizes and ratios
- Universal & standard mounting
- Patented input coupling design
- Full range of accessories
- Superior gear componentry
- Suitable for small medium workloads
- Interchangeable with other brands
- Your choice of colour
- Combinations for high ratios
- Epoxy or colour coated options
Suitable for
- Wide range of food processing systems
- Driving conveyor systems
- Mixers and agitator processes
- Mobile plant equipment
- Materials handling
- Any automation
