PART NAME | CABLE DIAMETER | D | AG | H | GL |
---|---|---|---|---|---|
HGSSM12 | 5-6.5mm | 21 | M12 x 1.5 | 19 | 6 |
HGSSM16 | 6-7mm | 27 | M16 x 1.5 | 20 | 6 |
HGSSM16 | 9-10mm | 27 | M16 x 1.5 | 20 | 6 |
HGSSM20 | 9-12mm | 33 | M20 X1.5 | 22.5 | 6 |
HGSSM25 | 16-18mm | 38 | M25 x 1.5 | 23.5 | 7 |
All sizes in mm |
Stainless Steel Cable Glands
EMC Shielded Connection
316 SS Hygienic Cable Glands
Product Enquiry: Stainless Steel Cable Glands

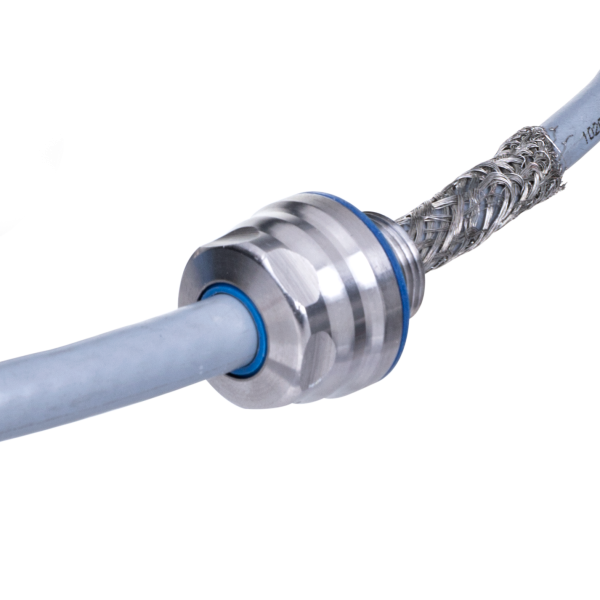

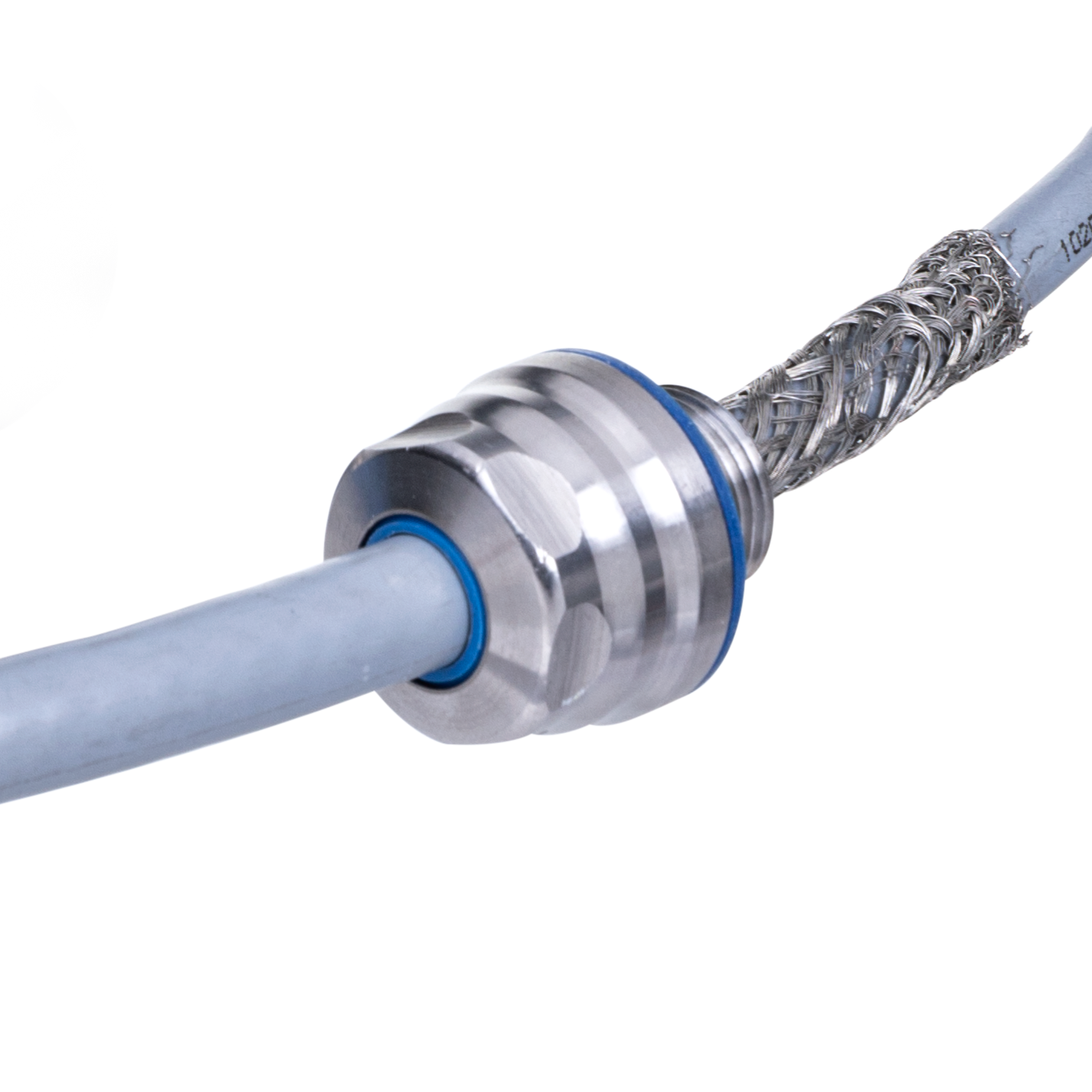

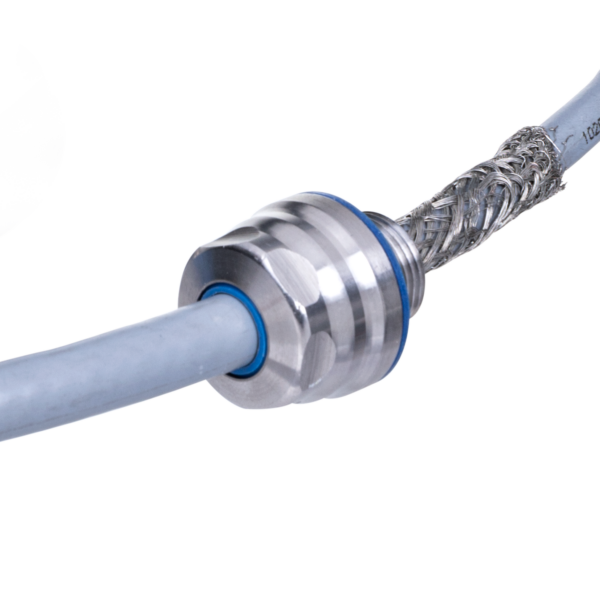

HYGIENIC STAINLESS STEEL EMC CABLE GLANDS
The Stainless 316 Hygienic cable glands offer a hygienic and IP69k connection from your cable into the cabinet or terminal box.
Standard these glands offer EMC shield connection.
The wide selection of possible cable diameter offers a solution for almost every cable.
EQM Hygiene Stainless Steel Cable Glands
DOWNLOAD PDF (348.12 KB)EQM HGSSM20D6.5
87.18 KB
EQM HGSSM16D6.6
72 KB
EQM HGSSM16D8
70.32 KB
EQM HGSSM16D9
23.49 KB
EQM HGSSM16D10
23.39 KB
EQM HGSSM20D8
87.17 KB
EQM HGSSM20D9.5
88KB
EQM HGSSM20D10.5
88KB
EQM HGSSM20D13
88KB
EQM HGSSM20D13.75
88KB
EQM HGSSM25D16
87KB
EQM HGSSM25D18.5
87KB
