MM3 Vertical Bend 45 Degrees
Elevate your conveyor system with the MM3 Vertical Bend 45 Degrees, engineered for efficient vertical maneuverability.
- Tolerance: ± 2 degrees & Radius: ± 10mm.
- Connecting strip and set screw included.
Variants:

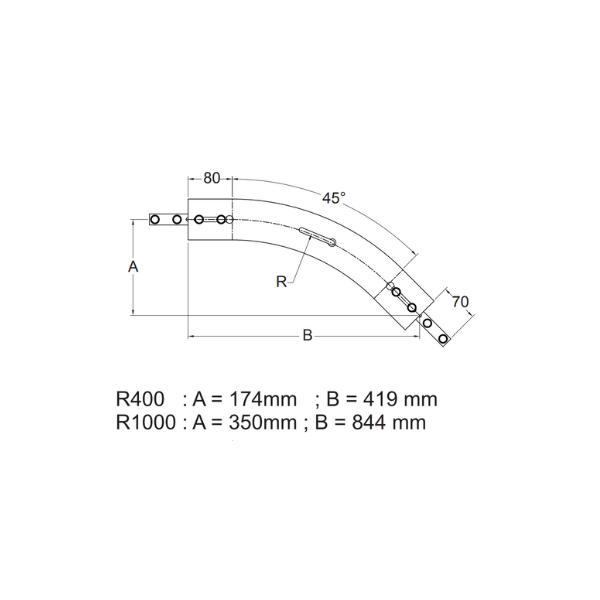

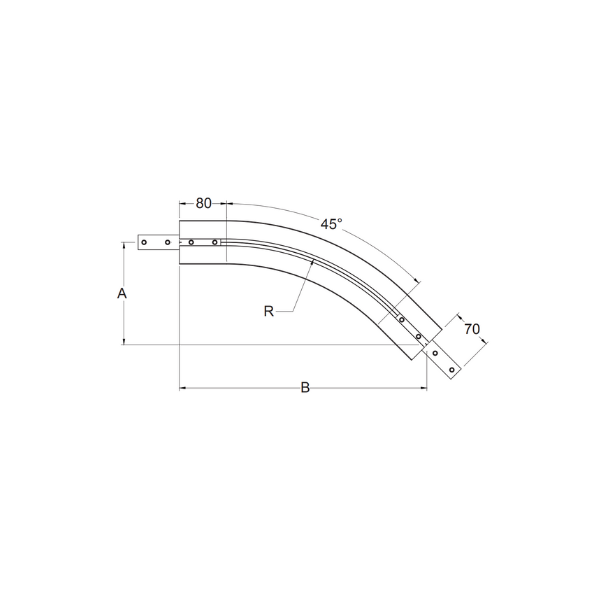

- MM3 Vertical Bend 45 Degrees, R400
- Effective track length: 0.47m 1-way (0.94m 2-way).
- Weight: 1.7kg
- Supply: 1 Unit
- MM3 Vertical Bend 45 Degrees, R1000
- Effective track length: 0.95m 1-way (1.90m 2-way).
- Weight: 3.0kg
- Supply: 1 Unit
