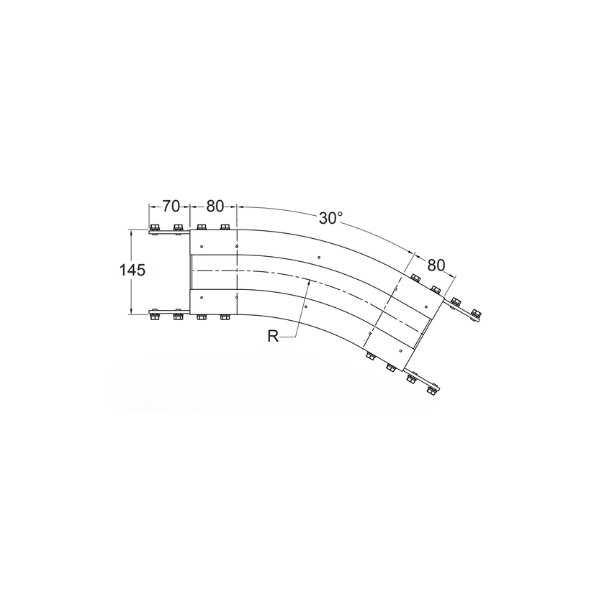

DL2 Horizontal Plain Bend 30 Degrees

Integrate precision and flexibility into your conveyor system with the DL2 Horizontal Plain Bend 30 Degrees. Tailored for efficient material handling around corners, this bend offers various effective track lengths.

Tolerance: ± 2 degrees & Radius: ± 10mm

Connecting strip and set screw included.

Effective Track Length:

• R500: 0.66m 1-way (1.32m 2-way)
• R700: 0.77m 1-way (1.54m 2-way)
• R1000: 0.92m 1-way (1.84m 2-way)

Variants:

• Horizontal Plain Bend 30 Degrees, 500mm
  • Radius: 500mm
  • Weight: 2.2kg
  • Supply: 1 Unit

• Horizontal Plain Bend 30 Degrees, 700mm
  • Radius: 700mm
  • Weight: 2.8kg
  • Supply: 1 Unit

• Horizontal Plain Bend 30 Degrees, 1000mm
  • Radius: 1000mm
  • Weight: 3.6kg
  • Supply: 1 Unit
