- Belt Width – 200mm, 300mm & 400mm
- Inner Radius – 200mm, 250mm & 300mm
- Outer Radius – 400mm, 550mm, 700mm
- Working Height – 400-1100mm from floor to top of conveyor – Adjustable in height +50mm fitted with support feet
- Belt Type – PU-belt, 2-layers, anti-static, colour blue, food grade and plastic wheels with stainless steel bearings
- Standard Transfer – ø37mm measured at the centre, ø 22mm inner radius and ø 50mm outer radius

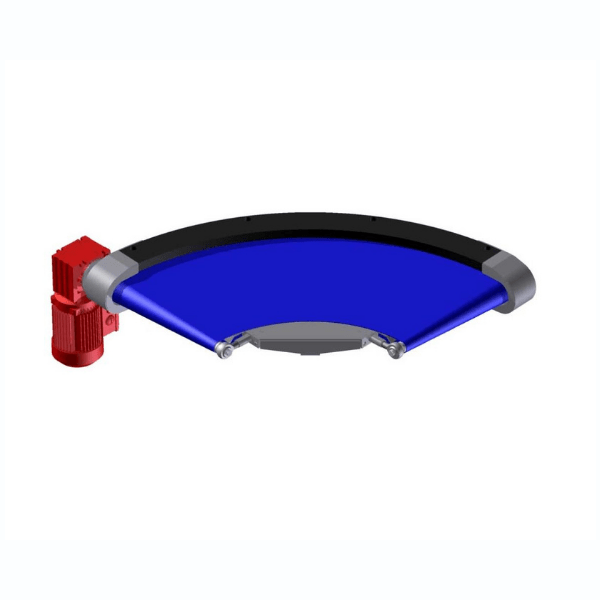

- Shaft Mounted Geardrive
- Finish – Framework fabricated from stainless, glass bead blasted and fitted with black plastic belt guide
90 Degree Belt Conveyors

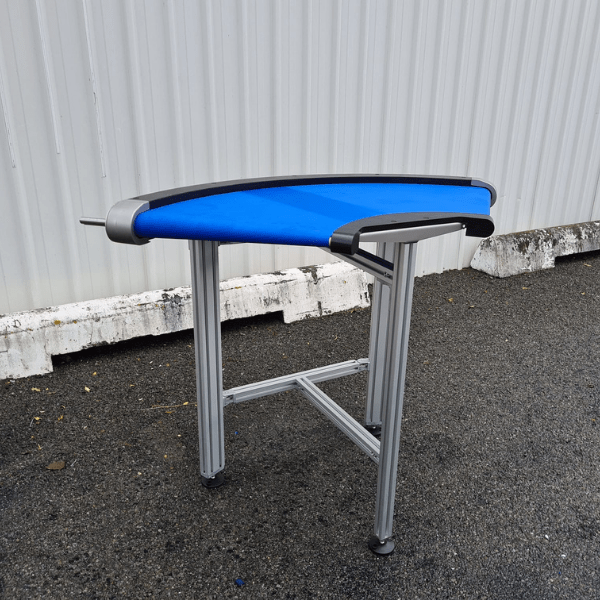

Compact 90 Degree Stainless Steel Belt Conveyor Bend.
A simple concept of 2 conical rollers in a small diameter, a very common conveyor to be used in a large variety of industries.
Allows a conveyor system to turn corners without changing the orientation of the parts.
