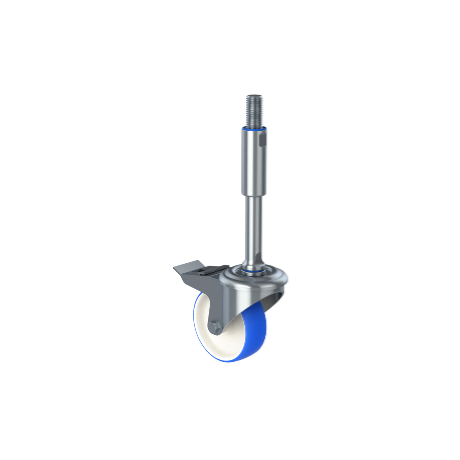

Hygienic Levelling Castors – SCRB-XH
Shipping calculated at checkout.
SCRB-XH Series
The only castors in the world with hygienic levelling spindles for use in sanitary production environments.
Self-draining surfaces, sealed movable parts and no exposed thread secures absolute minimum cleaning and maximum sanitary safety.
- Weight load up to1.500 N
- Hygienic levelling swivel castor
- Height variation 184 – 367mm
- Brake and swivel on wheel
- NGI Global brand
Large range of sizes available on request (below table only a sample)
Ultra Hygienic Levelling Castors for Production Floor Environments

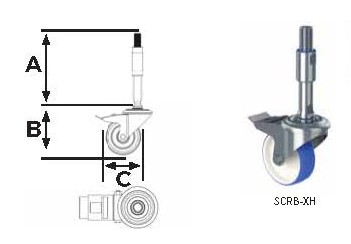

| Item Code | Thread | A | B | C | Load Capacity (kg) |
|---|---|---|---|---|---|
| SCRB080 | M20/M24/M30 | 150/210 | 108 | 80 | 560/400 |
| SCRB100 | M20/M24/M30 | 150/210 | 128 | 100 | 600/400 |
| SCRB125 | M20/M24/M30 | 150/210 | 155 | 125 | 960/1500 |
| SCRB160 | M24/M30 | 150/210 | 195 | 160 | 960/1500 |
| all sizes in mm | M36 available upon | ||||
| request |
Hygienic Levelling Castors - SCRB-XH
DOWNLOAD PDF (150.98 KB)Related products
