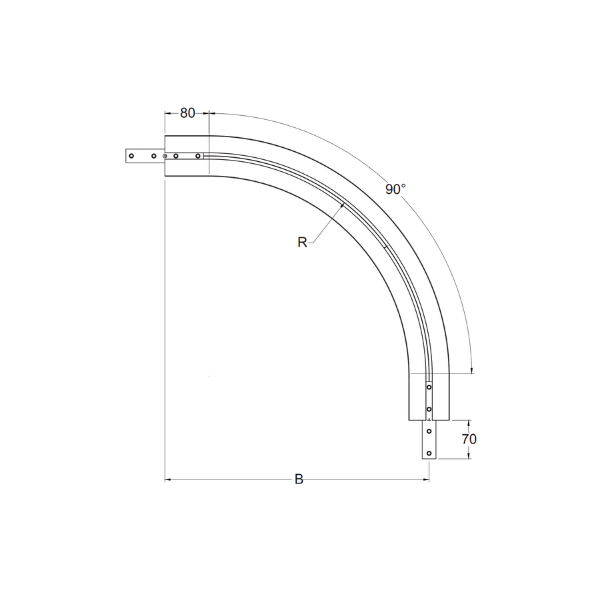

MM3 Vertical Bend 90 Degrees

Elevate your conveyor system with the MM3 Vertical Bend 90 Degrees, engineered for efficient vertical maneuverability.

• Tolerance: ± 2 degrees & Radius: ± 10mm.
• Connecting strip and set screw included.

Variants:

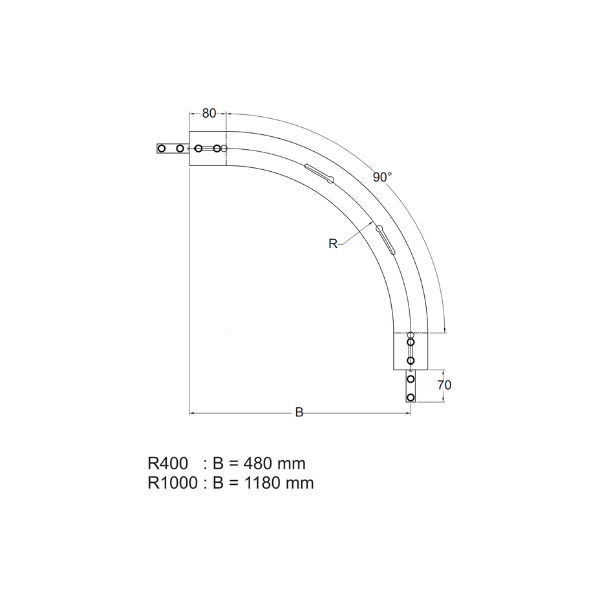

• MM3 Vertical Bend 90 Degrees, R400
  • Effective track length: 0.63m 1-way (1.26m 2-way).
  • Weight: 2.5kg
  • Supply: 1 Unit

• MM3 Vertical Bend 90 Degrees, R1000
  • Effective track length: 1.73m 1-way (3.46m 2-way).
  • Weight: 5.0kg
  • Supply: 1 Unit
